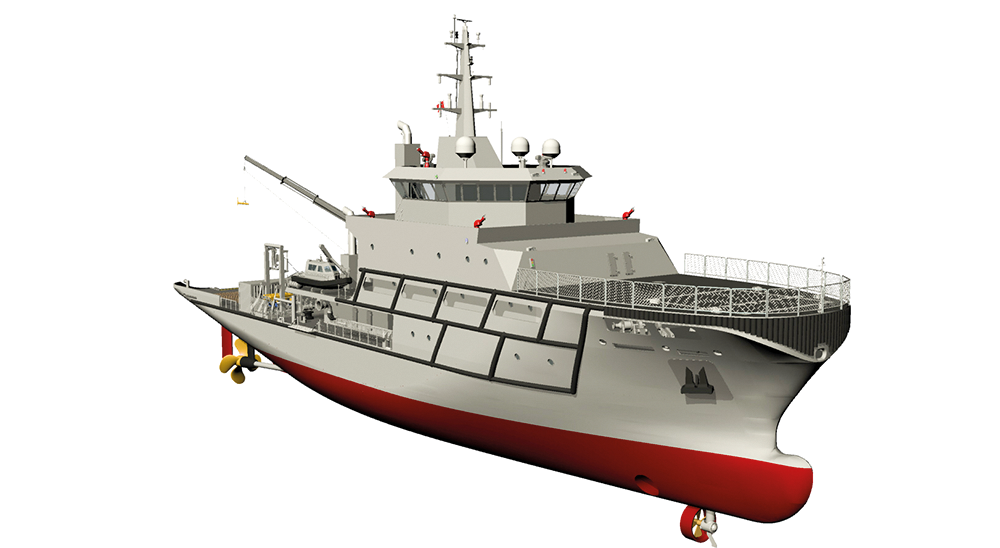

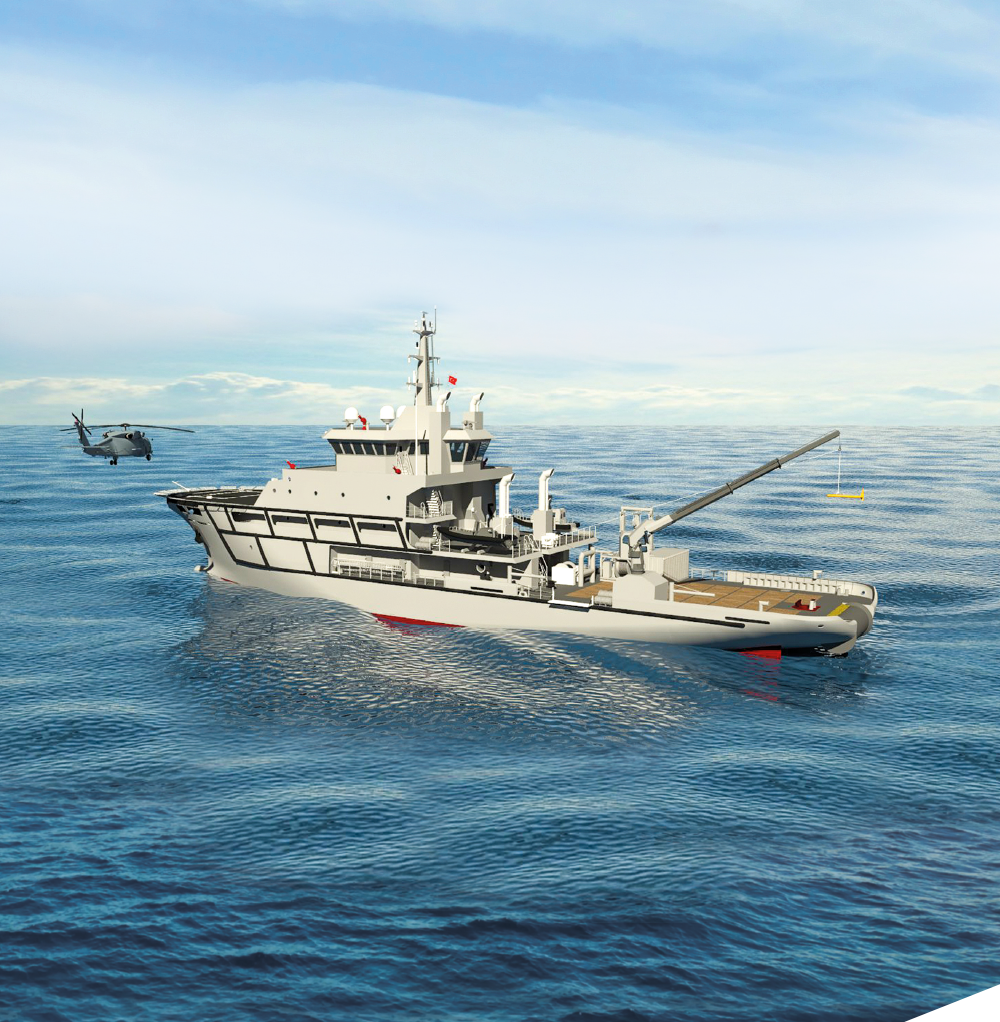

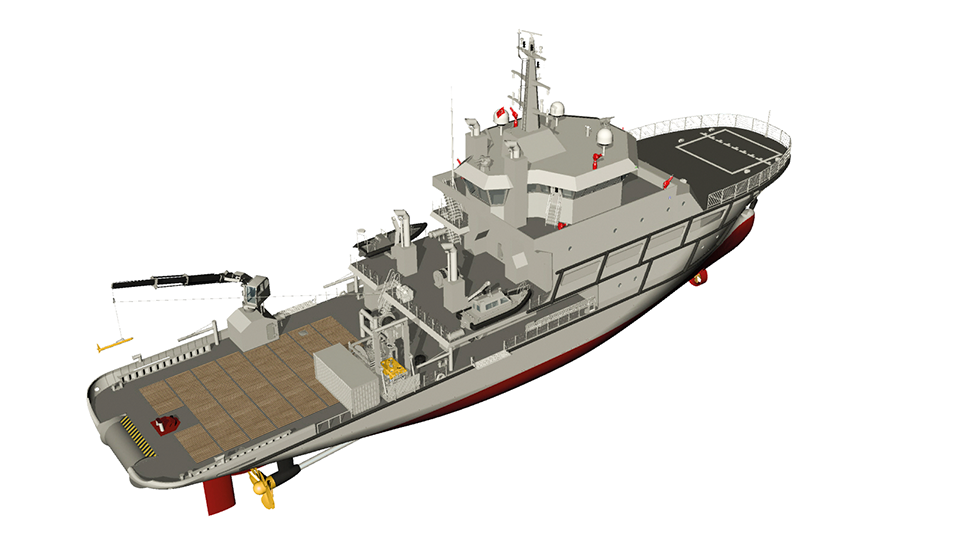

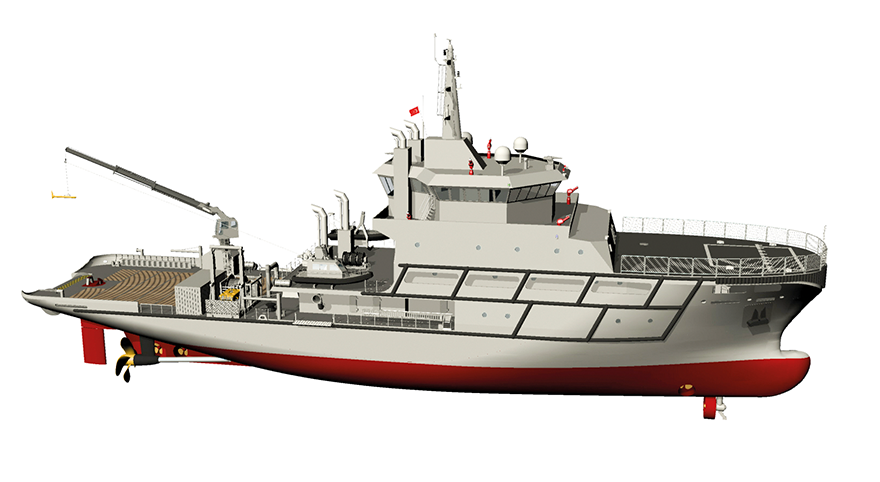

Multi Purpose Offshore Support Vessel

Multi Purpose Offshore Support Vessel


Multi Purpose Offshore Support Vessel - PDFCatalog

GENERAL

  • Length (Loa) : 72.6 m
  • Beam : 16 m
  • Draft : 4.5 m
  • Displacement : 2700 t
  • Max Speed : 16 kts
  • Range : 3500 NM
  • Hull : Steel
  • Superstructure : Steel
  • Crew : 80
  • Classification : Turkish Lloyd

MISSIONS

  • Anchor Handling
  • Diving Support
  • Buoy-Laying
  • Fuel and General Cargo to Remote Areas /
  •    Offshore Platforms
  • Fire-Fighting
  • Evacuation of Sick Personnel
  • Fishery Protection
  • Environmental Protection
  • ROV Support
  • Oil Recovering
  • Rescue / Salvage Operations

WEAPONS

  • 2 x 12.7 mm Stabilized Automatic Machine Gun


Multi Purpose Offshore Support Vessel Multi Purpose Offshore Support Vessel
Multi Purpose Offshore Support Vessel Multi Purpose Offshore Support Vessel

PROPULSION & ELECTRIC SYSTEM

  • Main Engines : 4 x Main Diesel Engine (Conventional Propulsion)  or 4 x Main Diesel Genset
  • Propulsion : 2 x CC Propeller
    • 1 x Bow Tunnel Thruster
    • 1 x Bow Retractable Thruster
    • 2 x Stern Tunnel Thruster
  • Generator Set : 3 x Diesel Generator
